| PPGI | WIDTH 1.0 m | WIDTH 1.2 m |
| THICKNESS | LENGTH/TON | LENGTH/TON |
| MM | (m) | (m) |
| 0.13 | 1010 |
|
| 0.14 | 920 |
|
| 0.15 | 849 |
|
| 0.16 | 820 |
|
| 0.17 | 750 | 625 |
| 0.18 | 710 | 590 |
| 0.19 | 670 | 559 |
| 0.20 | 637 | 532 |
| 0.21 | 610 | 506 |
| 0.22 | 580 | 480 |
| 0.23 | 560 | 462 |
| 0.24 | 530 | 442 |
| 0.25 | 510 | 425 |
| 0.26 | 490 | 410 |
| 0.27 | 472 | 393 |
| 0.28 | 455 | 380 |
| 0.29 | 440 | 366 |
| 0.30 | 425 | 354 |
| 0.32 | 400 | 332 |
| 0.35 | 365 | 305 |
| 0.37 | 350 | 287 |
| 0.40 | 322 | 265 |
| 0.42 | 303 | 253 |
| 0.45 | 285 | 236 |
| 0.47 | 271 | 226 |
| 0.50 | 255 | 212 |
| 0.60 | 212 | 177 |
| 0.70 | 182 | 152 |
| 0.80 | 160 | 133 |
| 0.90 | 142 | 118 |
| 1.00 | 128 | 106 |

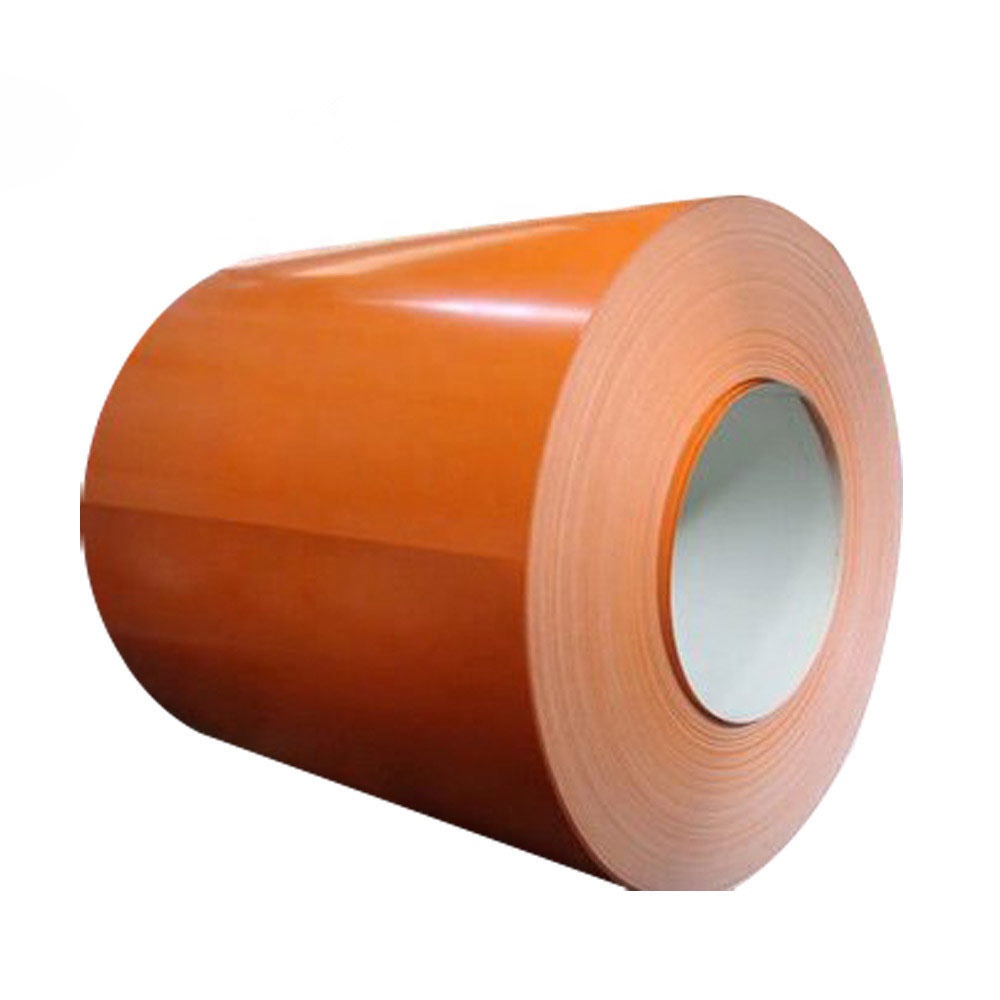

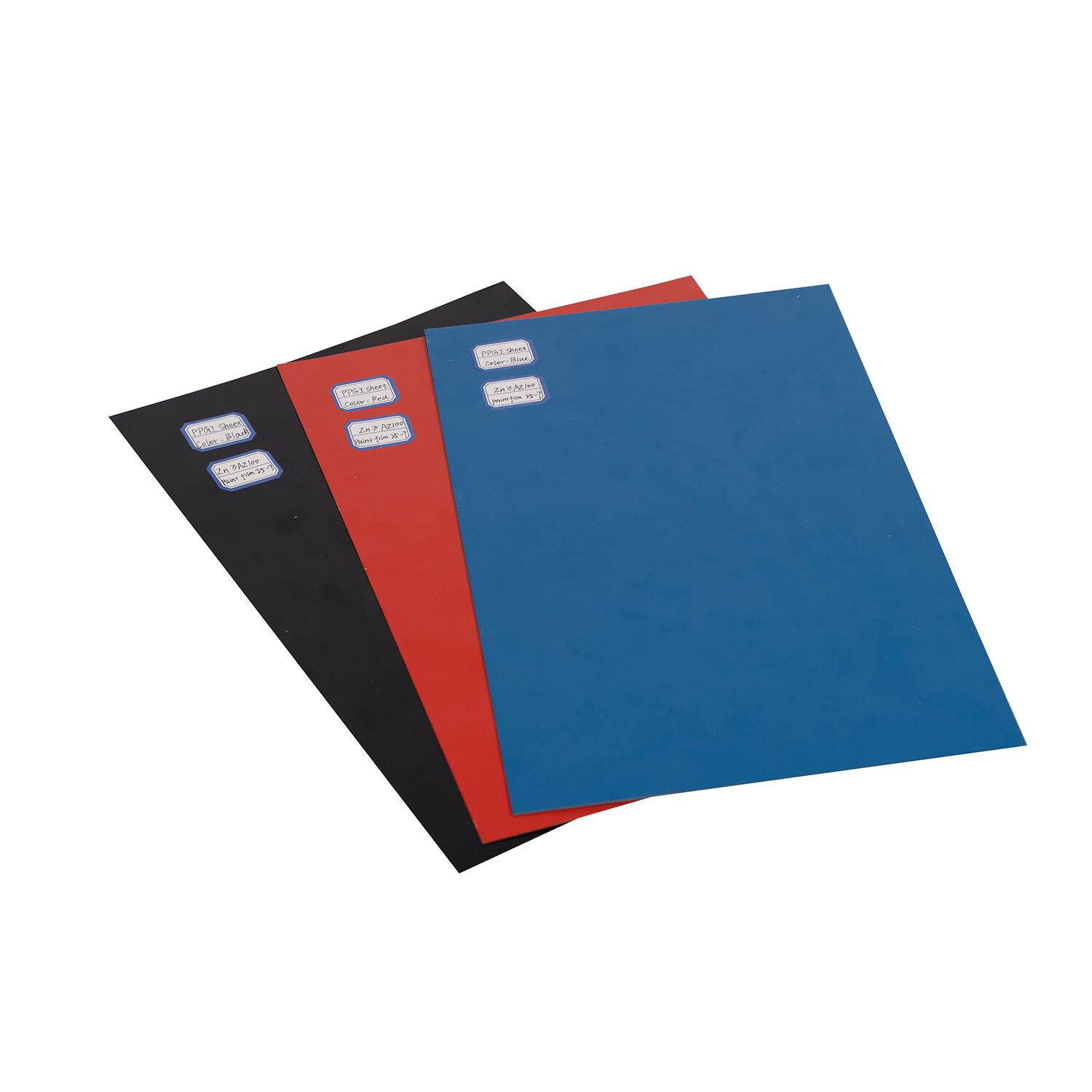

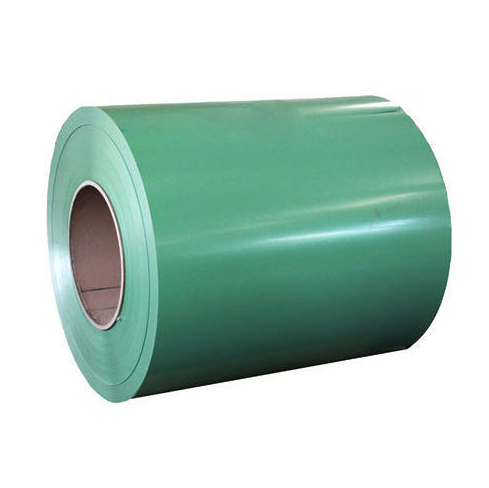

Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemicaltreatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.
Color coated steel coil is mainly divided into three parts: construction, household appliances and transportation.
Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.
| Material | CGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D |
| Thickness | 0.12-1.5mm |
| Width | 600-1250mm |
| Zinc coating | Z40-275g/m2 |
| Painting Coating | Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Painting | Nippon, KCC,AkzoNobel, etc |
| Coating type | PE, SMP, HDP, PVDF |
| Resin con-structure | Double painting and double baking process |
| Back side coating color | Light grey, white and so on |
| Coil ID | 508 / 610MM |
| Coil Weight | 3-5 Tons |
| Annual Output Quantity | 350,000MT |
| MOQ | 25 tons or one container |
| Payment | T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface structure | Norma, Matt, PVC film, wood grain, Flower Grained, embossed, etc |
| Color chart | RAL color number |
| Application | PPGI is featured with light weight, good looking and Anti corrosion. It can be processed directly, mainly used for construction industry, home electronic apparatus industry, electronic apparatus industry, furniture industry and transportation. |
